Mounting a TV over a Spanish Revival fireplace

Quick answer

Find out what the chimney breast is built from before drilling, check for heat from the fire, mount as low as the mantel allows, and route wires with a raceway on masonry. Never run a power cord inside the wall.

In a lot of Alhambra living rooms, the fireplace is the only wall without a window, an arch or a doorway on it. Spanish Colonial Revival houses from the 1920s were designed around that hearth, often with a sculpted plaster chimney breast, a tile surround, or a tapered hood that rises toward a beamed or coved ceiling.

So when people want a TV on the wall, the fireplace is the natural spot, and also the trickiest one.

This guide covers what we look at before mounting a TV over an older fireplace, the parts you can plan yourself, and what the job involves when we do it.

What is behind the plaster

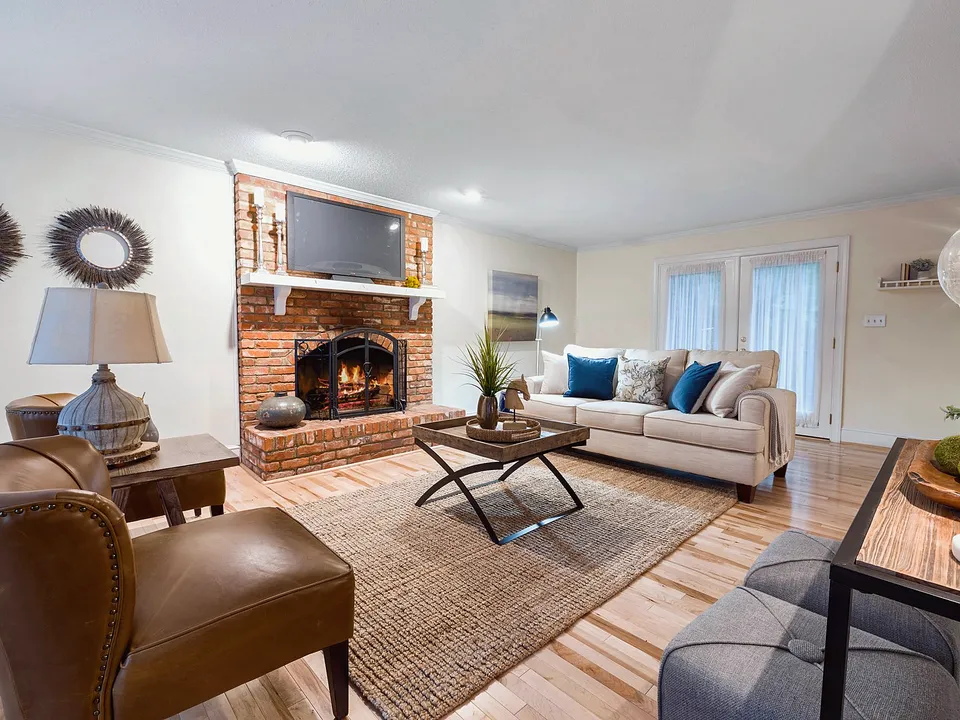

A chimney breast in an older house can be built a few different ways. Some are solid brick or concrete block faced with plaster. Others have a framed wood box around a masonry flue, finished in plaster over lath.

A few have been opened up and refinished over the years with drywall. You cannot tell which you have by looking.

The construction decides the hardware. Solid masonry takes sleeve anchors or concrete screws in pre-drilled holes. A framed chimney breast needs the mount lagged into wood framing, not just the plaster skin.

Mixed construction, where framing sits in front of brick with a gap between, needs longer fasteners or a different approach entirely.

We start every fireplace mount by finding out what we are drilling into, with a stud finder, a small test hole in a spot the TV will cover, and sometimes a look from the attic or the side of the chimney.

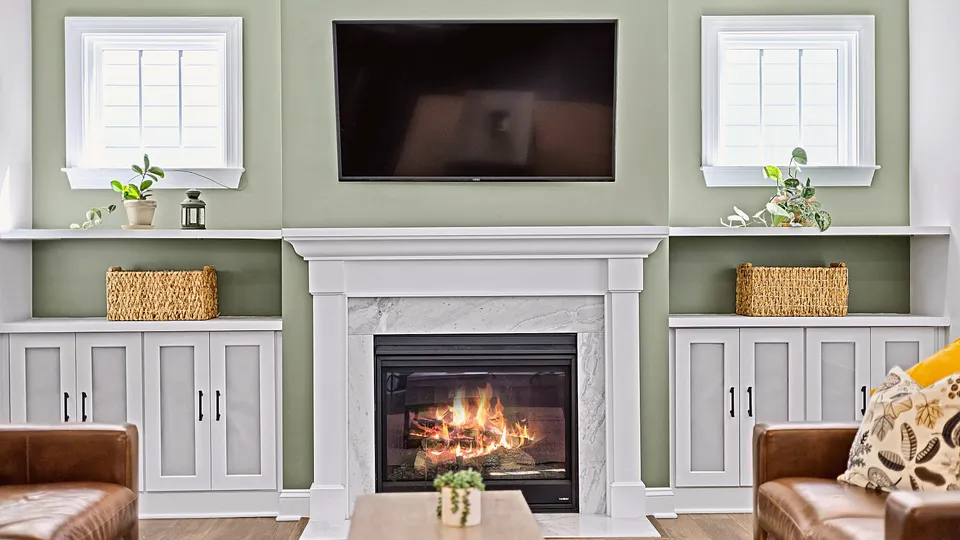

Heat and the mantel

A working fireplace sends heat up the face of the wall, and electronics do not love heat. Before planning a mount over an active fireplace, check your TV manual; many manufacturers give guidance on heat sources. A deep mantel shelf deflects a lot of warm air away from the wall. A tall hood with no mantel sends it straight up.

Viewing height

Fireplace mounts often end up too high. A comfortable target is having the center of the screen not far above eye level from your usual seat. Over a mantel, that is rarely possible, so the compromise is a mount that sits as low as the mantel allows, or a tilting or pull-down mount that brings the screen lower and angles it toward the couch.

If the room has a coved or beamed ceiling, measure the clearance above as well; a large screen can crowd the top of a narrow chimney breast.

Getting the wires out of sight

This is the part people underestimate. On a framed wall, it is often possible to run power and cables inside the wall to an outlet below. On a masonry chimney, the inside of the wall is brick and flue, so wires cannot be fished through.

The usual answers are a paintable surface raceway run along the edge of the chimney breast, a raceway tucked under the mantel and down the side, or placing components in a cabinet beside the fireplace and using a single slim cable bundle.

What you can plan before we arrive

• Measure the TV and note its weight from the manual or the box
• Decide where you usually sit and measure eye height from that seat
• Tell us whether the fireplace is used and how often
• Set aside the mount if you already bought one, plus all the hardware it came with
• Note where your cable box, game console or sound bar will live

What the mounting visit involves

We confirm the wall construction and pick fasteners to match. On brick or block, we use a hammer drill and masonry anchors rated for the load, drilled into solid brick rather than mortar joints whenever possible. On a framed chimney breast, we find the framing and lag into it.

Plaster gets taped and pre-drilled so the surface does not chip around the holes.

We level the mount, hang the TV, check the tilt and lock it in. Wires get routed the cleanest way your wall allows, and we walk you through the options if a raceway is needed. If your fireplace has an original tile surround, we keep the drill well away from it unless you specifically want hardware there.

Read more about our TV mounting service. If you also want art or a mirror on a side wall, see our notes on hanging heavy items on plaster.

Alternatives worth considering

Sometimes the best spot is not over the fireplace at all. A corner placement on an articulating mount, a low media console beside the hearth, or a wall across from a big front window can all work better in a room with tall arched windows. We are happy to talk through the room with you.

Text a photo of the wall and the couch to (626) 684-3505 and we will tell you what we would do.
