Adding recessed lights to an old plaster ceiling
Quick answer
Slim LED wafer lights need only a small round hole and very little ceiling depth, which makes them a good fit for older plaster ceilings. The main work is planning the layout around joists, running power carefully, and cutting the plaster cleanly so it does not crack.
Many older Alhambra rooms were lit by a single ceiling fixture, or by lamps. Adding recessed lighting can make a kitchen, hallway or living room far more usable. Modern LED wafer lights make it much easier than it used to be, even in plaster ceilings.
Why LED wafer lights suit older homes
Traditional recessed cans needed a large housing above the ceiling. Wafer-style LED lights are thin, mount directly in a round hole, and connect to a small junction box that slips through the same hole. That means less cutting, less heat and less disruption to old plaster.
Planning the layout

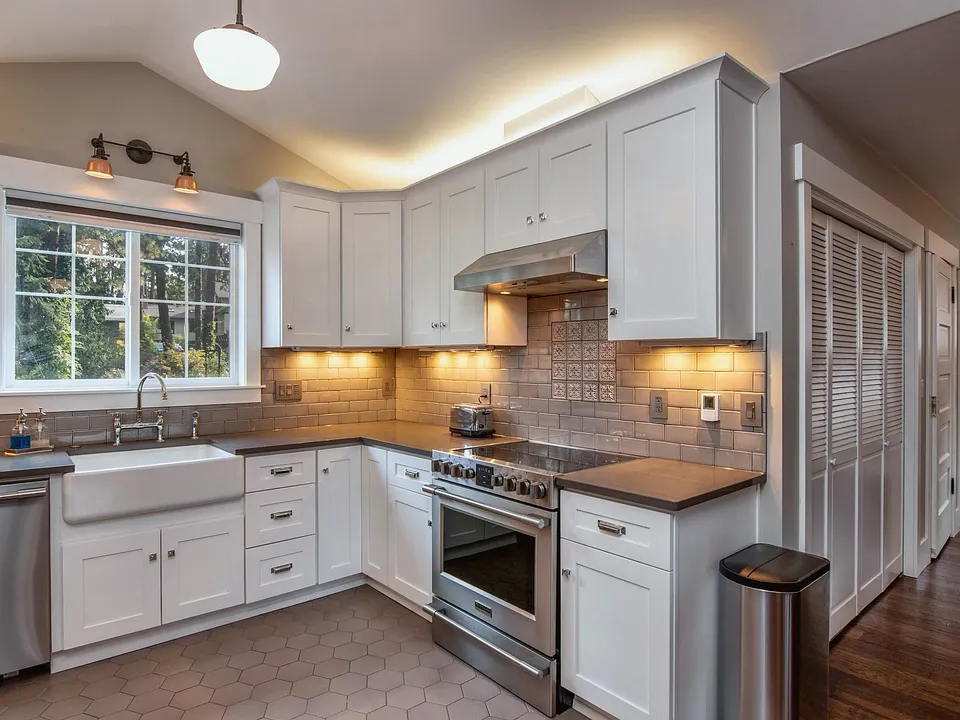

- Kitchens: lights over the counters, not just the center of the room, so you are not working in your own shadow.

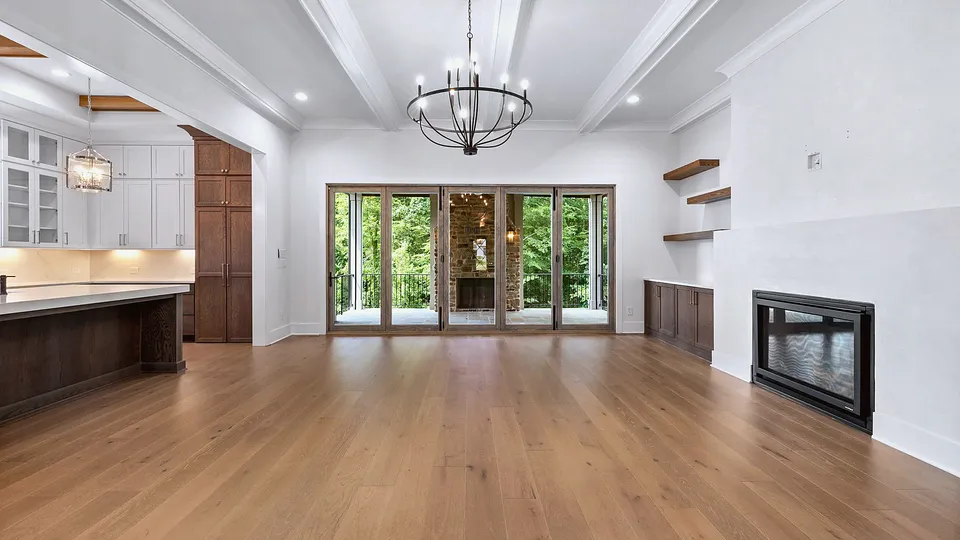

- Living rooms: wider spacing, often on a dimmer, with lamps still doing some of the work.
- Hallways: a few evenly spaced lights rather than one bright one.
Plaster and lath challenges
Old ceilings have wood lath behind the plaster, and the joists may not be where you expect. We locate joists and existing wiring first, then cut with a sharp hole saw, steadying the plaster as we go so it does not crack outward.
Power, switches and dimmers
The new lights usually tie in to an existing ceiling fixture's circuit and switch. A dimmer rated for LED lights avoids flicker and hum. If the room has no switched ceiling light today, adding one is a bigger job, and we explain the options before starting.
What plaster changes
Plaster and lath ceilings in 1920s Alhambra homes are thicker and harder than drywall, often around an inch including lath, and they are attached to wood strips nailed across the joists. Cutting holes in plaster can crack it, loosen it from the lath, and send a lot of dust into the room.
The lath strips can also snag a hole saw. Recessed lighting is still possible, but the layout and cutting take more care.
Canless fixtures for plaster

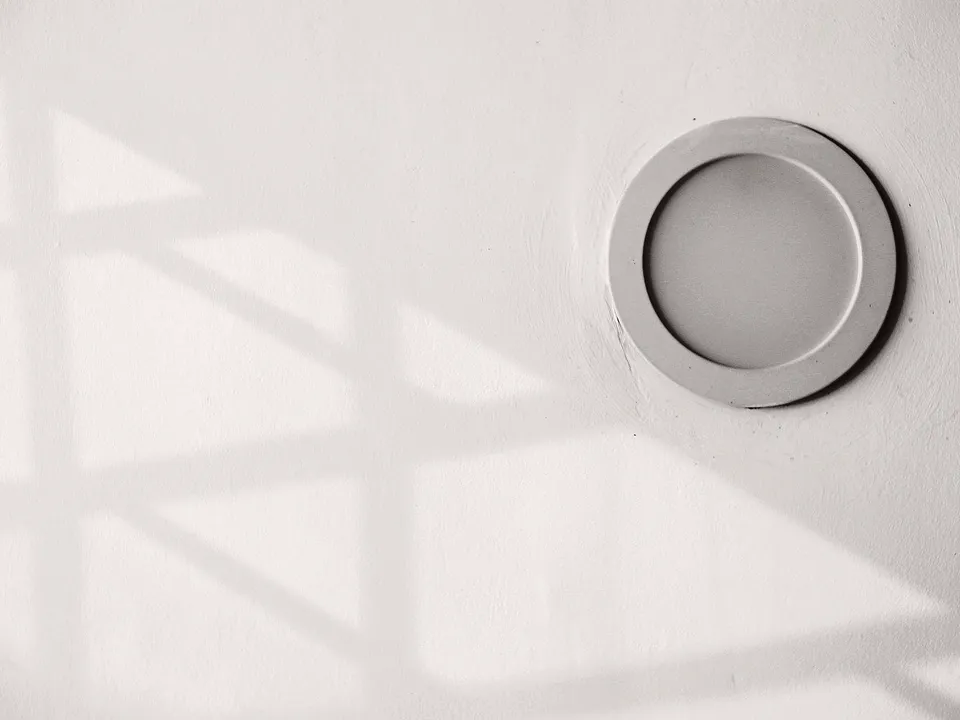

Thin canless LED fixtures are a good fit for plaster ceilings. They need only a round hole and a small junction box that sits beside the hole above the ceiling. Spring clips grip the ceiling from above.
Because plaster is thicker than drywall, check that the clips can handle the thickness; some fixtures list a maximum ceiling thickness.
Cutting cleanly
We mark each hole and check for joists with a stud finder and a small test hole. A sharp carbide hole saw at slow speed, with the ceiling supported around the cut, reduces cracking. Taping the ceiling where we cut helps.
A vacuum held next to the saw catches much of the dust. Dust control matters, because old plaster and paint may contain lead.
Running wire
Without attic access, fishing wire between holes in plaster takes patience. Lath and old blocking get in the way. Sometimes small access holes are needed and then patched. With attic access, wiring is much easier.
Old wiring and insulation
Some homes still have knob-and-tube wiring in the attic. Insulation should not cover knob-and-tube wiring, and new wiring should not be tied into it without evaluation. We check what is there and recommend an electrician when needed. Canless LED fixtures rated for insulation contact can be covered by insulation.
Layout
Keep fixtures two to three feet from walls and space them evenly. Coved or decorative ceilings may look better with a central fixture and wall sconces instead of many recessed lights. Arched and beamed ceilings may not have room for fixtures.
Our steps:
- Check the ceiling structure and wiring path
- Protect the room and mark the layout
- Cut holes carefully and contain dust
- Run cable and connect junction boxes
- Install fixtures and a compatible dimmer
- Patch any cracks and touch up
Patching around holes
Small cracks around holes can be filled with setting compound and touched up. The fixture trim covers most of the edge. For other ceiling fixtures, see replacing light fixtures in 1920s ceilings.
For plaster repair, see plaster cracks.
Historic character
Many owners prefer keeping a central light fixture in older homes and adding recessed lights only in kitchens and hallways. Recessed lights in living rooms can feel modern. A mix of lamps, sconces and a few recessed lights preserves the character while improving light.
Plan the job so the room can be emptied or covered. Even with careful cutting, plaster dust settles on everything, and it is easier to clean a bare room.
If a ceiling has many old cracks, repair and stabilize it before adding lights. New holes in a weak ceiling can make loose plaster fall.
What our retrofit involves
We confirm the circuit and its capacity, plan the layout with you, then cut the holes, fish the wire between them through the ceiling, and connect each light. We install the switch or dimmer, test everything, and patch any plaster we disturbed.
See our recessed lighting retrofit page.
Choosing the light
Warm white (around 2700K to 3000K) suits most older Spanish Revival interiors. Look for a high color rendering index so wood trim and tile look natural.
